Stock construction model with Neural Networks (Fall 2022)

December 4, 2022 15 minute read

[Notice] Journey to the academic researcher This is the story of how I became the insightful researcher.

This is a stock selection model through neural networks technology. Based on more than ten years of previous data, the model returns the set of stocks that can have the highest returns through the neural networks.

Fall 2022 | Instructor: Lin Tong | Student: Jihong Yu

In this example, we will randomly select 100 stocks from the database “rpsdata_rfs_cleaned_2000.csv” using the random seed 2021. We will do some data preparations for the subsequent procesures.

Data Preparation

import pandas as pd
df = pd.read_csv("rpsdata_rfs_cleaned_2000.csv")
df["datadate"]=pd.to_datetime(df["datadate"],format="%Y-%m-%d")
df["DATE"]=pd.to_datetime(df["DATE"],format="%Y-%m-%d")
df.head()

	permno	fyear	sic2	spi	mve_f	bm	ep	cashpr	dy	lev	...	baspread	std_dolvol	std_turn	ill	zerotrade	BETA	betasq	rsq1	pricedelay	idiovol
0	10001	1999	49	0.000000	20.99325	0.644588	0.075596	-24.025440	0.054541	1.416217	...	0.012581	1.078260	0.597444	4.016382e-06	3.818182e+00	0.062780	0.003941	-0.004141	1.905185	0.025807
1	10002	1998	60	0.000000	115.71000	0.509429	0.048181	-6.261051	0.021191	3.844966	...	0.035375	1.163444	0.172986	3.703263e-06	7.636364e+00	0.487761	0.237910	0.033295	-0.025434	0.050570
2	10009	1998	60	0.000000	50.61000	0.757597	0.095673	-28.390070	0.022782	10.058840	...	0.031896	1.046077	4.829668	2.535039e-07	2.881086e-08	0.299177	0.089507	0.022911	0.391768	0.035277
3	10012	1998	36	-0.101781	34.62894	0.130151	-0.105057	20.815490	0.000000	0.166681	...	0.112558	0.712583	23.904390	1.265005e-08	3.353590e-09	2.389729	5.710806	0.088599	-0.264245	0.145356
4	10016	1998	38	-0.003628	300.37280	0.183991	0.031607	2.865464	0.000000	0.692200	...	0.043094	1.005188	2.595967	8.944278e-08	3.859758e-08	0.619844	0.384207	0.093318	-0.096680	0.039299

5 rows × 147 columns

Randomly sample stocks.

df.head()

	permno	fyear	sic2	spi	mve_f	bm	ep	cashpr	dy	lev	...	baspread	std_dolvol	std_turn	ill	zerotrade	BETA	betasq	rsq1	pricedelay	idiovol
0	10001	1999	49	0.000000	20.99325	0.644588	0.075596	-24.025440	0.054541	1.416217	...	0.012581	1.078260	0.597444	4.016382e-06	3.818182e+00	0.062780	0.003941	-0.004141	1.905185	0.025807
1	10002	1998	60	0.000000	115.71000	0.509429	0.048181	-6.261051	0.021191	3.844966	...	0.035375	1.163444	0.172986	3.703263e-06	7.636364e+00	0.487761	0.237910	0.033295	-0.025434	0.050570
2	10009	1998	60	0.000000	50.61000	0.757597	0.095673	-28.390070	0.022782	10.058840	...	0.031896	1.046077	4.829668	2.535039e-07	2.881086e-08	0.299177	0.089507	0.022911	0.391768	0.035277
3	10012	1998	36	-0.101781	34.62894	0.130151	-0.105057	20.815490	0.000000	0.166681	...	0.112558	0.712583	23.904390	1.265005e-08	3.353590e-09	2.389729	5.710806	0.088599	-0.264245	0.145356
4	10016	1998	38	-0.003628	300.37280	0.183991	0.031607	2.865464	0.000000	0.692200	...	0.043094	1.005188	2.595967	8.944278e-08	3.859758e-08	0.619844	0.384207	0.093318	-0.096680	0.039299

5 rows × 147 columns

import random
num_stock=100   #The number of stocks.
random.seed(2021)
stocklist =  random.sample(list(df.permno.unique()),num_stock)
df = df[df.permno.isin(stocklist)].copy()
del df["datadate"]
del df["fyear"]
df.sort_values(by=["permno","DATE"],inplace=True)
df.reset_index(drop=True,inplace=True)

df.head()

	permno	sic2	spi	mve_f	bm	ep	cashpr	dy	lev	sp	...	baspread	std_dolvol	std_turn	ill	zerotrade	BETA	betasq	rsq1	pricedelay	idiovol
0	10325	56	-0.010241	83.51094	0.936201	0.024356	-17.92364	0.010083	2.94395	6.996401	...	0.069598	0.712721	3.341473	1.221359e-07	1.587679e-08	1.801611	3.245802	0.150400	0.177043	0.086112
1	10325	56	-0.010241	83.51094	0.936201	0.024356	-17.92364	0.010083	2.94395	6.996401	...	0.070863	0.803676	2.309144	2.448277e-07	2.721601e-08	1.846191	3.408423	0.151738	0.186343	0.088105
2	10325	56	-0.010241	83.51094	0.936201	0.024356	-17.92364	0.010083	2.94395	6.996401	...	0.063259	0.721935	4.526667	9.009622e-08	1.925423e-08	1.792151	3.211805	0.144251	0.250596	0.087058
3	10325	56	-0.010241	83.51094	0.936201	0.024356	-17.92364	0.010083	2.94395	6.996401	...	0.061893	0.781739	4.661429	7.737564e-08	1.564298e-08	1.818809	3.308067	0.155762	0.111497	0.087586
4	10325	56	-0.010241	83.51094	0.936201	0.024356	-17.92364	0.010083	2.94395	6.996401	...	0.055615	0.968370	2.274174	1.641843e-07	5.060460e-08	1.853151	3.434170	0.164967	0.159384	0.087659

5 rows × 145 columns

When the data table contains many NaNs, we must be very careful in dropping NaNs in order to keep as many rows and columns as possible.

Remove all columns except the ones with less than 20% NaNs
Apply imputation to the remaining columns.

We can change 20% to other threshold to optimize our performance. The following code applies this procedure to a copy of df.

from sklearn.impute import SimpleImputer
imputer = SimpleImputer(strategy='mean')
nanpercent = 0.2
dftemp = df.copy()
#Remove all columns except the ones with less than nanpercent NaNs
dftemp = dftemp[dftemp.columns[dftemp.isna().mean(axis=0)<nanpercent]]
#Impute the remaining columns.
dftemp.loc[:,dftemp.columns[dftemp.isna().sum(axis=0)>0]] = imputer.fit_transform(dftemp.loc[:,dftemp.columns[dftemp.isna().sum(axis=0)>0]])
print("Before")
print(df.shape)
print("After")
print(dftemp.shape)

Before
(8422, 145)
After
(8422, 121)

dftemp = dftemp.set_index('permno')

featurename=list(dftemp.columns)
featurename.remove("DATE")
featurename.remove("RET")
targetname="RET"

Building Neural Network

from sklearn import preprocessing
import datetime
from datetime import timedelta, date
from dateutil.relativedelta import relativedelta
import tensorflow as tf
from tensorflow import keras
from tensorflow.keras import layers
import os
import numpy as np
import random as python_random
#Set up the random seeds to reproduce results.
import statistics
import matplotlib.pyplot as plt

def data_dividor(test_start_date, test_end_date):
    """divide the data based on the target_date"""
    train_x = dftemp[dftemp.DATE<test_start_date].loc[:,featurename]
    train_y = dftemp[dftemp.DATE<test_start_date].loc[:,targetname]
    test_x = dftemp[(dftemp.DATE>=test_start_date) & (dftemp.DATE<test_end_date)].loc[:,featurename]
    test_y = dftemp[(dftemp.DATE>=test_start_date) & (dftemp.DATE<test_end_date)].loc[:,targetname]

    # scaling the data from 0 to 1
    min_max_scaler = preprocessing.MinMaxScaler()
    train_x = min_max_scaler.fit_transform(train_x)
    test_x = min_max_scaler.transform(test_x)

    # returns training and test sets
    return train_x, train_y, test_x, test_y

def nn_builder(train_x, train_y, test_x):
    """Building the neural network model to predict stock prices"""
    keras.backend.clear_session()  #Clean the session to reset the model/layer ID
    model = tf.keras.models.Sequential([
      tf.keras.layers.Dense(128, activation='sigmoid',input_shape=(train_x.shape[1],)),
      tf.keras.layers.Dense(16, activation='sigmoid'),
      tf.keras.layers.Dense(1, activation='linear')
    ])
    # model.summary()

    # Set the concrete random numbers
    os.environ['PYTHONHASHSEED']=str(0)
    np.random.seed(2021)
    python_random.seed(2021)
    tf.random.set_seed(2021)

    #Define an optimizer, for example, Adam
    opt = keras.optimizers.Adam(learning_rate=0.01)

    #Compile the model
    model.compile(optimizer=opt,   #Set optimizer='adam' if you want to use default learning rate.
                  loss='mean_squared_error',
                  metrics='mean_squared_error')

    #Train and record how the performance metrics changes during training.
    model.fit(train_x, train_y,
                    verbose=0,
                    batch_size=1000,
                    epochs=50
                   )

    forecaster= model.predict(test_x)
    return forecaster

start_date = "2010-01-01"
terminal_date = "2020-01-01"
s_date = pd.to_datetime(start_date)
e_date = pd.to_datetime(terminal_date)
iter_num = int(relativedelta(e_date, s_date).years)

high_mean = []
high_stv = []
low_mean = []
low_stv = []
temp_end = s_date

for i in range(1,iter_num+1):
    if temp_end == e_date:
        temp_end = s_date
        break
    if i == 1:
        temp_end = s_date + relativedelta(years=i)
        print("="*100)
        print("NN model construction")
        print("start date: ",s_date)
        print("end date: ",temp_end)

        train_x, train_y, test_x, test_y = data_dividor(s_date, temp_end)
        dftemp.loc[(dftemp.DATE>=s_date) & (dftemp.DATE<temp_end),"Signal"] = nn_builder(train_x, train_y, test_x)

        for j in range(1,13):
            if j == 1:
                temp_month_start = s_date
                temp_month_end = s_date + relativedelta(months = j)
                print("-"*100)
                print("selecting monthly highest and lowest")
                print("start date: ",temp_month_start)
                print("end date: ",temp_month_end)

                highest_df = dftemp.loc[(dftemp.DATE>=temp_month_start) & (dftemp.DATE<temp_month_end)].nlargest(10, "Signal")
                lowest_df = dftemp.loc[(dftemp.DATE>=temp_month_start) & (dftemp.DATE<temp_month_end)].nsmallest(10, "Signal")

                high_mean.append(statistics.mean(highest_df.RET))
                high_stv.append(statistics.stdev(highest_df.RET))
                low_mean.append(statistics.mean(lowest_df.RET))
                low_stv.append(statistics.stdev(lowest_df.RET))

            else:
                temp_month_start = temp_month_end
                temp_month_end = temp_month_start + relativedelta(months = 1)
                print("-"*100)
                print("selecting monthly highest and lowest")
                print("start date: ",temp_month_start)
                print("end date: ",temp_month_end)

                highest_df = dftemp.loc[(dftemp.DATE>=temp_month_start) & (dftemp.DATE<temp_month_end)].nlargest(10, "Signal")
                lowest_df = dftemp.loc[(dftemp.DATE>=temp_month_start) & (dftemp.DATE<temp_month_end)].nsmallest(10, "Signal")

                high_mean.append(statistics.mean(highest_df.RET))
                high_stv.append(statistics.stdev(highest_df.RET))
                low_mean.append(statistics.mean(lowest_df.RET))
                low_stv.append(statistics.stdev(lowest_df.RET))


    else:
        temp_start = temp_end
        temp_end = temp_start + relativedelta(years=1)
        print("="*100)
        print("NN model construction")
        print("start date: ",temp_start)
        print("end date: ",temp_end)
        train_x, train_y, test_x, test_y = data_dividor(temp_start, temp_end)
        dftemp.loc[(dftemp.DATE>=temp_start) & (dftemp.DATE<temp_end),"Signal"] = nn_builder(train_x, train_y, test_x)

        for j in range(1,13):
            if j == 1:
                temp_month_start = temp_start
                temp_month_end = temp_start + relativedelta(months = j)
                print("-"*100)
                print("selecting monthly highest and lowest")
                print("start date: ",temp_month_start)
                print("end date: ",temp_month_end)

                highest_df = dftemp.loc[(dftemp.DATE>=temp_month_start) & (dftemp.DATE<temp_month_end)].nlargest(10, "Signal")
                lowest_df = dftemp.loc[(dftemp.DATE>=temp_month_start) & (dftemp.DATE<temp_month_end)].nsmallest(10, "Signal")

                high_mean.append(statistics.mean(highest_df.RET))
                high_stv.append(statistics.stdev(highest_df.RET))
                low_mean.append(statistics.mean(lowest_df.RET))
                low_stv.append(statistics.stdev(lowest_df.RET))

            else:
                temp_month_start = temp_month_end
                temp_month_end = temp_month_start + relativedelta(months = 1)
                print("-"*100)
                print("selecting monthly highest and lowest")
                print("start date: ",temp_month_start)
                print("end date: ",temp_month_end)

                highest_df = dftemp.loc[(dftemp.DATE>=temp_month_start) & (dftemp.DATE<temp_month_end)].nlargest(10, "Signal")
                lowest_df = dftemp.loc[(dftemp.DATE>=temp_month_start) & (dftemp.DATE<temp_month_end)].nsmallest(10, "Signal")

                high_mean.append(statistics.mean(highest_df.RET))
                high_stv.append(statistics.stdev(highest_df.RET))
                low_mean.append(statistics.mean(lowest_df.RET))
                low_stv.append(statistics.stdev(lowest_df.RET))

====================================================================================================
NN model construction
start date:  2010-01-01 00:00:00
end date:  2011-01-01 00:00:00
11/11 [==============================] - 0s 850us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-01-01 00:00:00
end date:  2010-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-02-01 00:00:00
end date:  2010-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-03-01 00:00:00
end date:  2010-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-04-01 00:00:00
end date:  2010-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-05-01 00:00:00
end date:  2010-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-06-01 00:00:00
end date:  2010-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-07-01 00:00:00
end date:  2010-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-08-01 00:00:00
end date:  2010-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-09-01 00:00:00
end date:  2010-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-10-01 00:00:00
end date:  2010-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-11-01 00:00:00
end date:  2010-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2010-12-01 00:00:00
end date:  2011-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2011-01-01 00:00:00
end date:  2012-01-01 00:00:00
11/11 [==============================] - 0s 649us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-01-01 00:00:00
end date:  2011-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-02-01 00:00:00
end date:  2011-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-03-01 00:00:00
end date:  2011-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-04-01 00:00:00
end date:  2011-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-05-01 00:00:00
end date:  2011-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-06-01 00:00:00
end date:  2011-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-07-01 00:00:00
end date:  2011-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-08-01 00:00:00
end date:  2011-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-09-01 00:00:00
end date:  2011-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-10-01 00:00:00
end date:  2011-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-11-01 00:00:00
end date:  2011-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2011-12-01 00:00:00
end date:  2012-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2012-01-01 00:00:00
end date:  2013-01-01 00:00:00
11/11 [==============================] - 0s 932us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-01-01 00:00:00
end date:  2012-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-02-01 00:00:00
end date:  2012-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-03-01 00:00:00
end date:  2012-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-04-01 00:00:00
end date:  2012-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-05-01 00:00:00
end date:  2012-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-06-01 00:00:00
end date:  2012-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-07-01 00:00:00
end date:  2012-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-08-01 00:00:00
end date:  2012-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-09-01 00:00:00
end date:  2012-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-10-01 00:00:00
end date:  2012-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-11-01 00:00:00
end date:  2012-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2012-12-01 00:00:00
end date:  2013-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2013-01-01 00:00:00
end date:  2014-01-01 00:00:00
11/11 [==============================] - 0s 689us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-01-01 00:00:00
end date:  2013-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-02-01 00:00:00
end date:  2013-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-03-01 00:00:00
end date:  2013-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-04-01 00:00:00
end date:  2013-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-05-01 00:00:00
end date:  2013-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-06-01 00:00:00
end date:  2013-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-07-01 00:00:00
end date:  2013-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-08-01 00:00:00
end date:  2013-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-09-01 00:00:00
end date:  2013-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-10-01 00:00:00
end date:  2013-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-11-01 00:00:00
end date:  2013-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2013-12-01 00:00:00
end date:  2014-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2014-01-01 00:00:00
end date:  2015-01-01 00:00:00
11/11 [==============================] - 0s 885us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-01-01 00:00:00
end date:  2014-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-02-01 00:00:00
end date:  2014-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-03-01 00:00:00
end date:  2014-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-04-01 00:00:00
end date:  2014-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-05-01 00:00:00
end date:  2014-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-06-01 00:00:00
end date:  2014-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-07-01 00:00:00
end date:  2014-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-08-01 00:00:00
end date:  2014-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-09-01 00:00:00
end date:  2014-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-10-01 00:00:00
end date:  2014-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-11-01 00:00:00
end date:  2014-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2014-12-01 00:00:00
end date:  2015-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2015-01-01 00:00:00
end date:  2016-01-01 00:00:00
12/12 [==============================] - 0s 818us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-01-01 00:00:00
end date:  2015-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-02-01 00:00:00
end date:  2015-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-03-01 00:00:00
end date:  2015-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-04-01 00:00:00
end date:  2015-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-05-01 00:00:00
end date:  2015-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-06-01 00:00:00
end date:  2015-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-07-01 00:00:00
end date:  2015-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-08-01 00:00:00
end date:  2015-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-09-01 00:00:00
end date:  2015-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-10-01 00:00:00
end date:  2015-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-11-01 00:00:00
end date:  2015-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2015-12-01 00:00:00
end date:  2016-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2016-01-01 00:00:00
end date:  2017-01-01 00:00:00
13/13 [==============================] - 0s 935us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-01-01 00:00:00
end date:  2016-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-02-01 00:00:00
end date:  2016-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-03-01 00:00:00
end date:  2016-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-04-01 00:00:00
end date:  2016-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-05-01 00:00:00
end date:  2016-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-06-01 00:00:00
end date:  2016-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-07-01 00:00:00
end date:  2016-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-08-01 00:00:00
end date:  2016-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-09-01 00:00:00
end date:  2016-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-10-01 00:00:00
end date:  2016-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-11-01 00:00:00
end date:  2016-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2016-12-01 00:00:00
end date:  2017-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2017-01-01 00:00:00
end date:  2018-01-01 00:00:00
12/12 [==============================] - 0s 1ms/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-01-01 00:00:00
end date:  2017-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-02-01 00:00:00
end date:  2017-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-03-01 00:00:00
end date:  2017-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-04-01 00:00:00
end date:  2017-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-05-01 00:00:00
end date:  2017-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-06-01 00:00:00
end date:  2017-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-07-01 00:00:00
end date:  2017-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-08-01 00:00:00
end date:  2017-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-09-01 00:00:00
end date:  2017-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-10-01 00:00:00
end date:  2017-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-11-01 00:00:00
end date:  2017-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2017-12-01 00:00:00
end date:  2018-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2018-01-01 00:00:00
end date:  2019-01-01 00:00:00
12/12 [==============================] - 0s 809us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-01-01 00:00:00
end date:  2018-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-02-01 00:00:00
end date:  2018-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-03-01 00:00:00
end date:  2018-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-04-01 00:00:00
end date:  2018-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-05-01 00:00:00
end date:  2018-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-06-01 00:00:00
end date:  2018-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-07-01 00:00:00
end date:  2018-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-08-01 00:00:00
end date:  2018-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-09-01 00:00:00
end date:  2018-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-10-01 00:00:00
end date:  2018-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-11-01 00:00:00
end date:  2018-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2018-12-01 00:00:00
end date:  2019-01-01 00:00:00
====================================================================================================
NN model construction
start date:  2019-01-01 00:00:00
end date:  2020-01-01 00:00:00
13/13 [==============================] - 0s 937us/step
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-01-01 00:00:00
end date:  2019-02-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-02-01 00:00:00
end date:  2019-03-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-03-01 00:00:00
end date:  2019-04-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-04-01 00:00:00
end date:  2019-05-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-05-01 00:00:00
end date:  2019-06-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-06-01 00:00:00
end date:  2019-07-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-07-01 00:00:00
end date:  2019-08-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-08-01 00:00:00
end date:  2019-09-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-09-01 00:00:00
end date:  2019-10-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-10-01 00:00:00
end date:  2019-11-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-11-01 00:00:00
end date:  2019-12-01 00:00:00
----------------------------------------------------------------------------------------------------
selecting monthly highest and lowest
start date:  2019-12-01 00:00:00
end date:  2020-01-01 00:00:00

full_dates = dftemp.loc[(dftemp.DATE>="2010-01-01") & (dftemp.DATE<"2020-01-01")].DATE
full_dates = full_dates.to_numpy()
full_dates = np.unique(full_dates)
print(len(full_dates))

high_m = pd.DataFrame(high_mean, full_dates)
high_s = pd.DataFrame(high_stv, full_dates)
low_m = pd.DataFrame(low_mean, full_dates)
low_s = pd.DataFrame(low_stv, full_dates)

high_m.to_csv("long_portfolio_ret.csv")
high_s.to_csv("long_portfolio_stv.csv")
low_m.to_csv("short_portfolio_ret.csv")
low_s.to_csv("short_portfolio_stv.csv")

def cumulative_ret(returns):
    plus_one = []
    cum_ret = []

    for i in returns:
        plus_one.append(i+1)

    for idx, i in enumerate(plus_one):
        if idx == 0:
            cum_ret.append(i)
        else:
            cum_ret.append(cum_ret[idx-1]*i)

    return cum_ret

cum_long = cumulative_ret(high_mean)
cum_short = cumulative_ret(low_mean)

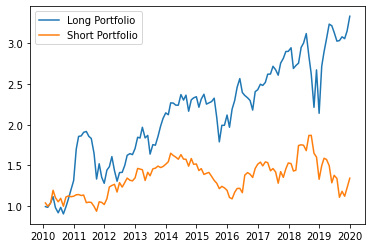

plt.plot(full_dates, cum_long, label = "Long Portfolio")
plt.plot(full_dates, cum_short, label = "Short Portfolio")
plt.legend()
plt.show()

family_1

dftemp.to_csv("full_dataset.csv")

long_port = pd.concat([high_m,high_s], axis =1)
long_port.columns = ["l_mean","l_stv"]

short_port = pd.concat([low_m,low_s], axis =1)
short_port.columns = ["s_mean","s_stv"]

cum_l = pd.DataFrame(cum_long, full_dates)
cum_l.columns = ["l_cum_ret"]
cum_s = pd.DataFrame(cum_short, full_dates)
cum_s.columns = ["s_cum_ret"]

fulldeck = pd.concat([long_port,cum_l,short_port,cum_s], axis =1)
fulldeck

	l_mean	l_stv	l_cum_ret	s_mean	s_stv	s_cum_ret
2010-01-29	-0.004422	0.085028	0.995578	0.039711	0.214839	1.039711
2010-02-26	-0.009013	0.097267	0.986605	-0.038077	0.092174	1.000122
2010-03-31	0.055456	0.078477	1.041318	0.036467	0.106512	1.036594
2010-04-30	0.073332	0.098117	1.117680	0.153541	0.231966	1.195753
2010-05-28	-0.119772	0.084221	0.983813	-0.074951	0.099705	1.106130
...	...	...	...	...	...	...
2019-08-30	0.002401	0.174070	3.031183	-0.172382	0.154210	1.109405
2019-09-30	0.015143	0.069278	3.077083	0.066460	0.054727	1.183136
2019-10-31	-0.007247	0.124325	3.054783	-0.051360	0.105104	1.122370
2019-11-29	0.030594	0.164779	3.148242	0.092424	0.181769	1.226104
2019-12-31	0.057558	0.191250	3.329449	0.096272	0.110828	1.344144

120 rows × 6 columns

fulldeck.to_csv("portfolio_info.csv")

Share on

Twitter Facebook LinkedIn

Stock construction model with Neural Networks (Fall 2022)

Fall 2022 | Instructor: Lin Tong | Student: Jihong Yu

Data Preparation

Building Neural Network

Share on

You may also enjoy

Journey to the academic researcher

Twitter tweets scrapping model (Fall 2022)

Text Analysis Code: whether a sentence is which ESG issues (Fall 2022)

How to scrappe Google Trends with Python (Fall 2022)
